Structural Pultrusion Process

The pultrusion process previously described on page 3, is ideally suited for the manufacture of structural shapes. Analogous to the steel rolling process, this process allows structural shapes to be manufactured to length, only restricted by transportation limitations.

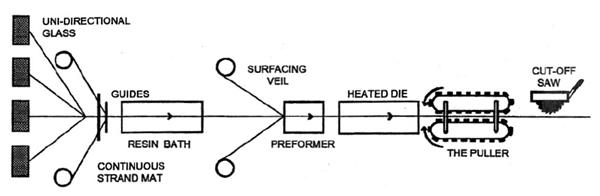

Continuous glass fibers that enter the process on the left are actually pulled the length of the process by a tractor (illustrated) or hand-over-hand pullers shown on the right. During the process, the glass bundle of continuous strands is wrapped with continuous strand mats that will provide the transverse strength. The entire reinforcement bundle is then pulled into a liquid resin bath (polyester or vinyl ester) and “wetted” out. The wetted reinforcement package is wrapped in a surfacing veil, which allows a resin-rich finish on the part, offering a first barrier to corrosion and a smooth finish. The completed package then goes into a performer that roughly forms the package into the appropriate shape to enter the heated die for curing. The die is the exact shape of the final part desired. Upon exiting the die, the part is over 90% cured and solid. The length of the part required is pulled through the cutoff saw and the process is complete.

Structural Shapes

Canadian Composite Structures manufactures all standard shapes used for structural projects. They are manufactured in both vinyl ester (standard color is beige) and polyester (standard color is dark gray). Embedment angles are only manufactured in vinyl ester and standard in dark gray to compliment the color of concrete. Reference AGL’s Availability List on the following page for a complete list of structurals provided.

Angle

Channel

Wide Flange Beam

Square Tube

Round Tube

Embedment Angle
