Phenolic Fiberglass Grating Specifications

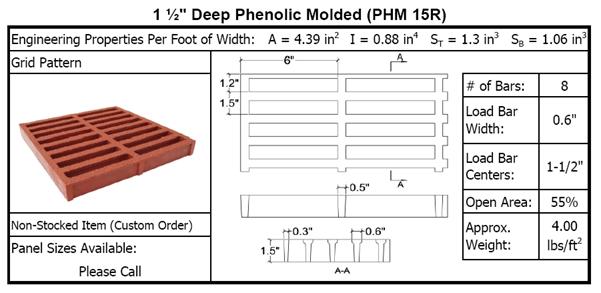

One and One Half Inch Deep Phenolic Molded Grating Specifications Table

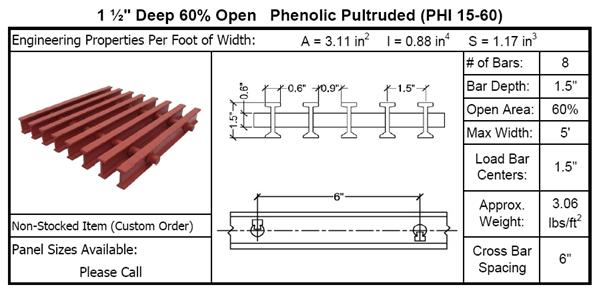

One and One Half Inch Deep Sixty Percent Open Phenolic Pultruded Grating Specifications Table

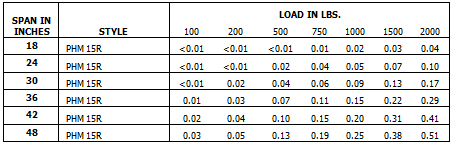

Point Load Deflection Table - U.S.C.G. Approved Fiberglass Grating

Point Load Deflection Example

Point Load Deflection Table

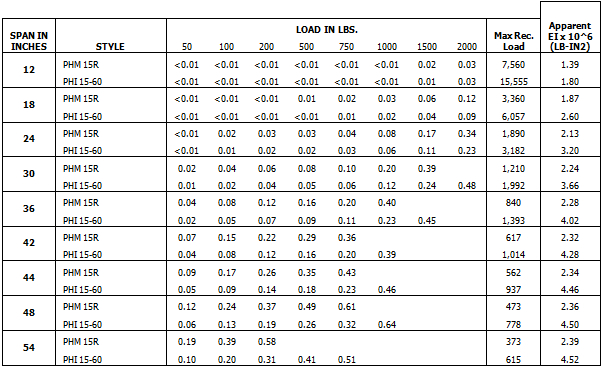

Uniform Load Deflection Table - U.S.C.G. Approved Fiberglass Grating

Uniform Load Deflection Example

Uniform Load Deflection Table

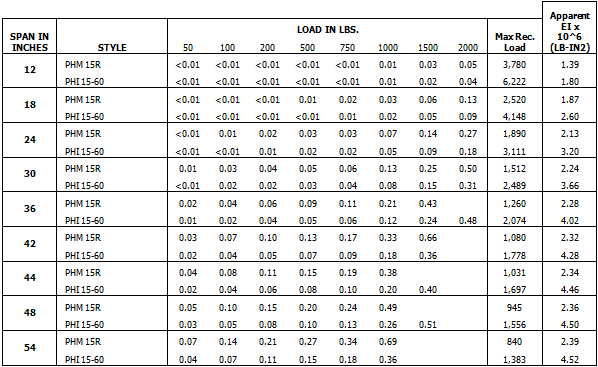

Concentrated Line Load Deflection Table - U.S.C.G. Approved Fiberglass Grating

Concentrated Line Load Example

Concentrated Line Load Deflection Table

Notes: PHM 15R – Phenolic Molded 1 ½” U.S.C.G. Approved, PHI 15-60 – Phenolic Pultruded 1 ½” 60% Open U.S.C.G. Approved Fiberglass Grating

The load data provided here is for general information only; as actual environment and operational conditions are beyond its control. For these reasons, Canadian Composite Structures LLC cannot guarantee that actual performance will correspond to the load tables provided here.
